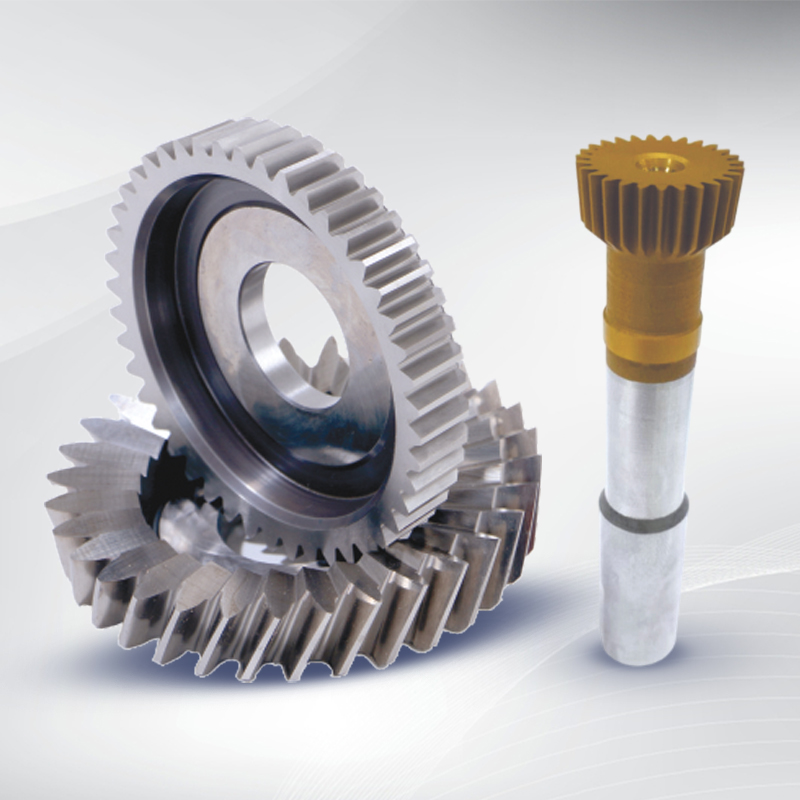

Gear Shaper Cutters
Type :-
Spur gear shaper & Helical gear shaper cutter for Internal gears & External gears. Also, Herringbone cutters.
Shapes :-
Disc type, Hub type, shank type
Specifications & Range :-
- Module from 0.5 to 20.
- Pressure angle from 10* to 50*.
- Helix angle from 0* to 50*.
- Teeth from 4 to 250.
Accuracy :-
Din Class AA, Class ‘A’ & B.
Inspection :-
Lead testing, Profile testing, Pitch testing on CNC Lead & Profile tester. CNC inspection report graphs provided.
Material :-
HSS M35, ASP2030, ASP2052.
Heat treatment :-
Vacuum hardening 63 to 67 HRC.
Features in profile :-
- Semi-topping & Protuberance
- Full-topping
- Preshaving
- Pregrinding
- Blocked tooth or missing tooth
- All coating possible (Tin, Alcrona pro etc)
Our company Vinod Industries Pvt Ltd is situated in the heart of Faridabad on a one acre plot. It was started 65 Years ago in the year 1959.
